For Awning

LED solutions for awning
Selection guide

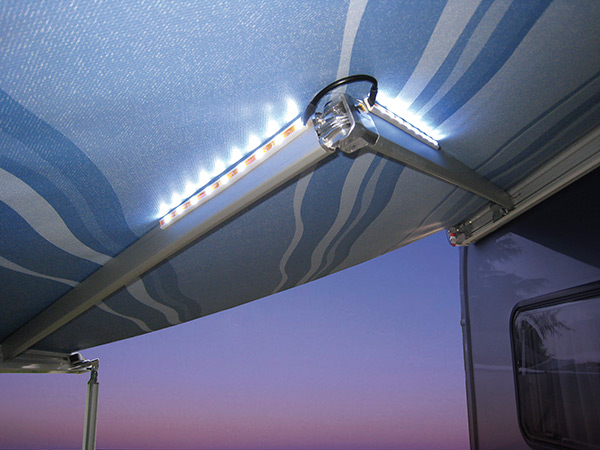

AWNING ARMS LED LED lighting system composed of 4 LED light kits mounted into sturdy supports and easily attached to the awning arms. The compact dimensions allow them to stay mounted, even when the awning is closed. Complete with 5 mt of cable for rapid connection.
Each group of lights contains 9 LEDs, which are equipped for external use. Low consumption, no overheating.
Easy to mount.
Dimensions of each light kit: L300xW17xH7mm.

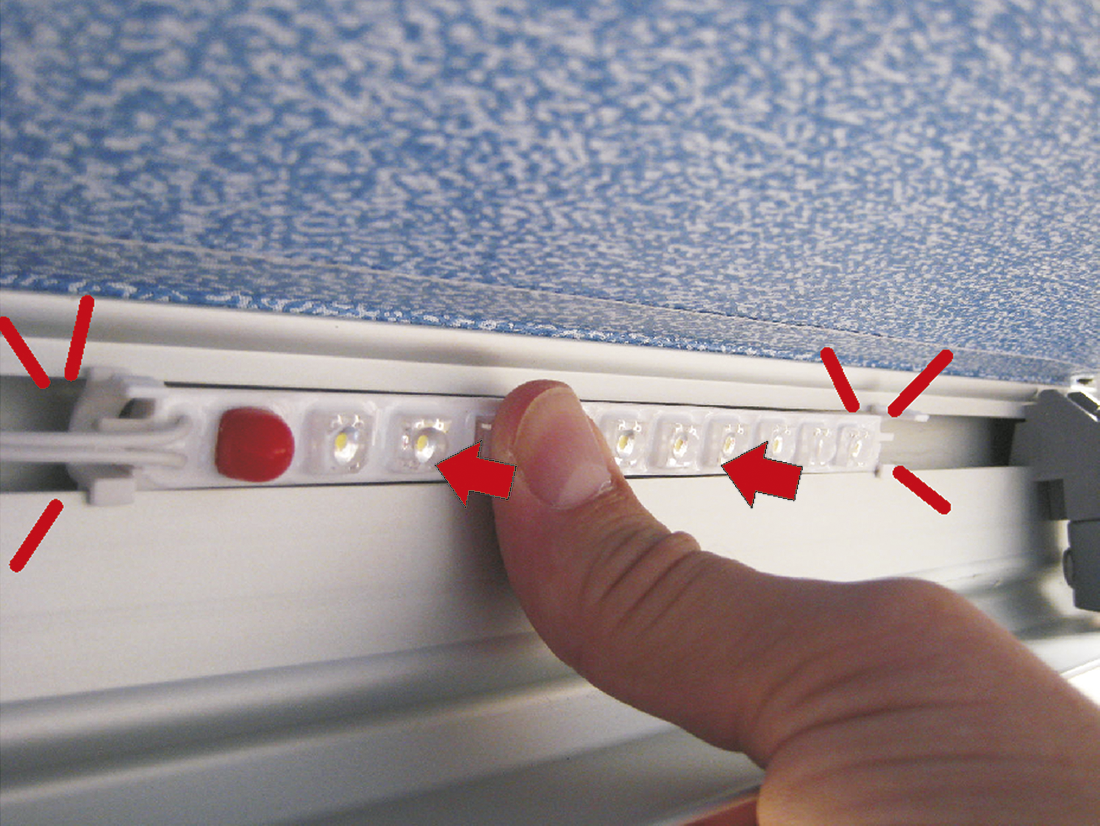

KIT AWNING LED Lighting system to be installed on F45 and F65 awnings. It is composed of two 12V 10 LED low consumption light strips and 5m of cable.
Easy to install by pushing them into the rear of the front fascia.
Also fits previous models of Fiamma awning.

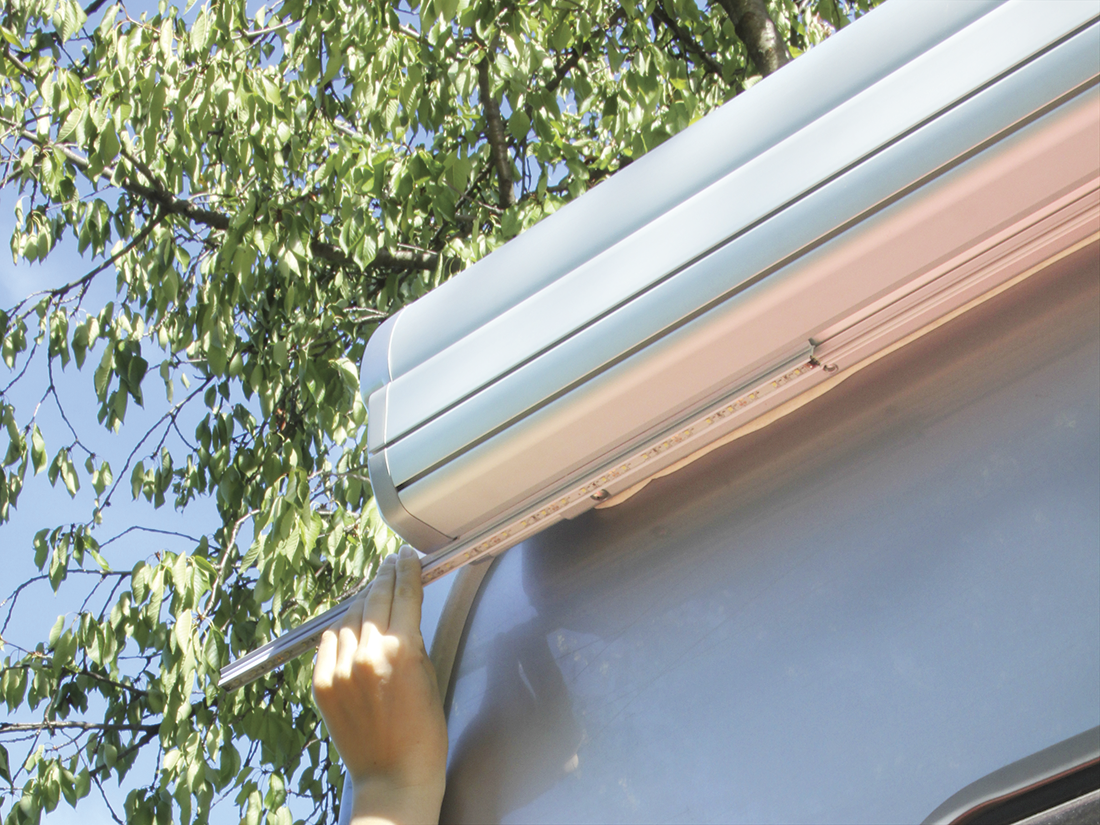

LED AWNING CASE  Light LED bar suitable for external use. To be inserted in the lower housing rail of the case of the
F45s, F45L and F70 winch awnings.
Delivered as standard in the length of 2.5 m. (for awnings 3.0 m long) composed of :
  • 1x bar with wiring for the 12 V electrical connection
  • 4x additional bars.
The bars fix by pressure.
The optional 50cm kit is available. It is possible to travel with the LED installed on the awning case.

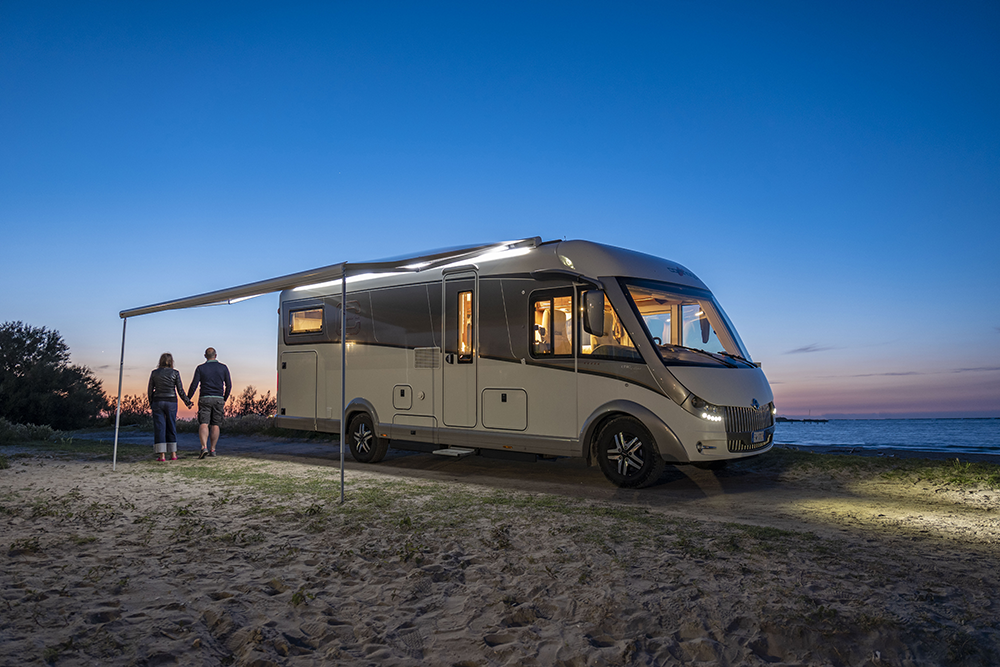

KIT LED STRIP AWNING  Specific LED lighting kit for the F80s & F65L awnings, consisting of a 5m LED sticky strip, easily shortened.
Supplied as standard with 10 pvc 50cm lenses to fit inside the internal profile of the lead bar (for both F80s and F65L awnings) and of the case (only for F80s).
A High Brightness version is also available.
Item Description Price
98655-849 Awning Arms LED $127.00
98655-471 Kit Awning LED $64.00
98655-914 LED Awning Case $194.00
98655-915 Kit LED Awning Case 50 $49.00
98655Z040 F80s FKit LED Strip Awning $140.00
98655Z051 F80s Kit LED Strip Awning High Brightness $169.00
Mentioned prices are suggested retail prices, Vat, Installation, Duties and Transport cost excluded.
Data sheet
Description Awning Arms LED Kit Awning LED LED Awning Case Kit LED Awning Case 50 F80s FKit LED Strip Awning F80s Kit LED Strip Awning High Brightness
LED colour neutral white cold white neutral white neutral white neutral white neutral white
Tone 5000 ° K 7000 ° K 5000 ° K 5000 ° K 4500 ° K 4500 ° K
Light Cone Angle 120 ° 60 ° 120 ° 120 ° 120° 120°
N° LED 18 10 150 30 30/m 60/m
Tension 12 V 12 V 12 V 12 V 12 V 12 V
Absorbtion 0,40 A 0,21 A 1 A 0,2 A 2,65 A 5,75 A
Absorbed power 1,8 W 2,6 W 12 W 2,4 W 32 W 69 W
Lumen 382 170 168 / bar 168 153/m 1200/m
