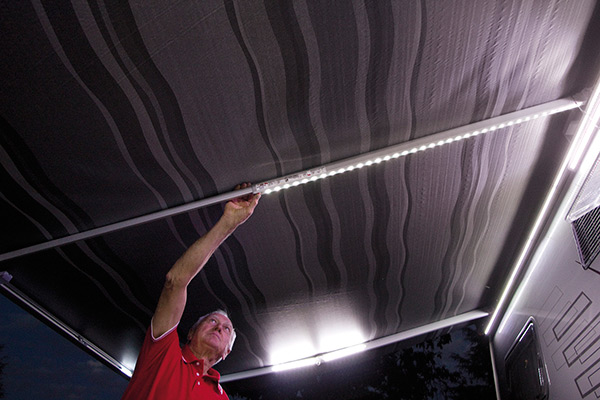

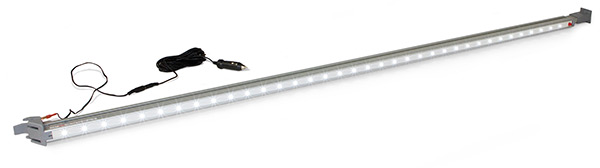

Telescopic Rafter LED made of solid anodized aluminium with 36 strong and brilliant LED lights. The Rafter LED also includes an integral on/off switch. 25mA LED lamps grant you a powerful white light in the centre of the awning without overheating and with low consumption. Equipped for external use. The Rafter LED can be placed in different positions. It is possible to install more than one Rafter LED. Dimensions: variable length (142-265cm).
Selection guide

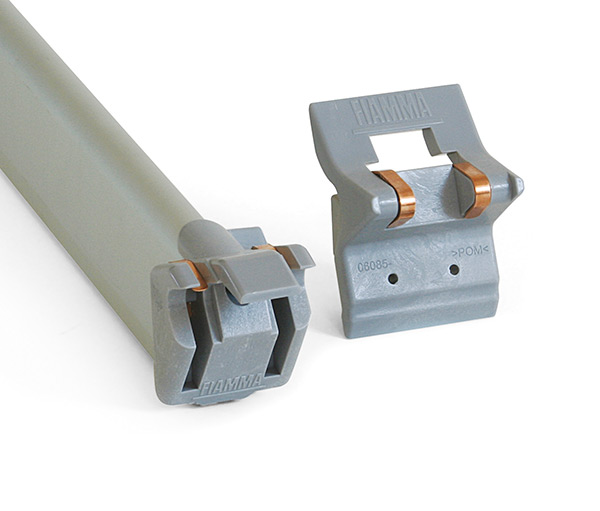

RAFTER LED Suitable for cassette awnings. Delivered as standard with hooks with electric connections to fix on F45s and F45L awnings (for F80s, F65s and F65 L optional kit 98655-877 is available): you only have to click the rafter into position and the lights come on as if by magic. After drilling and installing the electrical connection to the motorhome, you can use the 5m of cable that is supplied and comes complete with 12V cigarette lighter socket.
Item Description Price
98655-850 Rafter LED $140.00
Mentioned prices are suggested retail prices, Vat, Installation, Duties and Transport cost excluded.
Data sheet
Description Rafter LED
LED colour cold white
Tone 7000 ° K
Light Cone Angle 60 °
Lux/1M 98
N° LED 36
Tension 12 V
Absorbtion 0,30 A
Absorbed power 3,6 W
Weight 1.00 lbs
User Guide

User Guide
